Muster Station Boards & Cabinets

RSS in partnership with Seaward Safety provide a full turn-key design, fabrication and installation service for our extensive range of regulatory and precautionary signs. We can take control of the whole package, from site or desk-top survey, production of a MTO that meets all legislative and class requirements, fabrication, supply and installation. For the first time a ‘package-vendor’ service is now available for your signage, general information, muster, and emergency procedure boards and units. These can be provided in either pictorial or pictorial / written format.

Muster Station Cabinets are designed to provide assembly points in the case of an Emergency. T-Cards are provided for up to 150 personnel per cabinet, when ordering please specify for Interior or Exterior use. Emergency Response Boards are provided with T-Cards and are designed to designate personnel assigned to Emergency Response duties. We can supply our muster station systems with Stainless or fiberglass cabinets, both are heard wearing and suitable for marine environments.

The cabinets are bolted to our 34”h x 30” wide Di-bond back boards, this makes then suitable for mounting on hand rails or bulkheads. The di-bond boards are stove lacquered and hardwearing, The T-card racks are mounted within the cabinet.

We can supply T-card racks for 50/75/100 and 150. With the 150 cards per cabinets the racks and t-cards are smaller to enable sufficient slots to be mounted within the 24” x 16” x 6” cabinets.

T-cards are supplied in white card and lined, however plastic colored cards are available in both sizes, please specify when ordering.

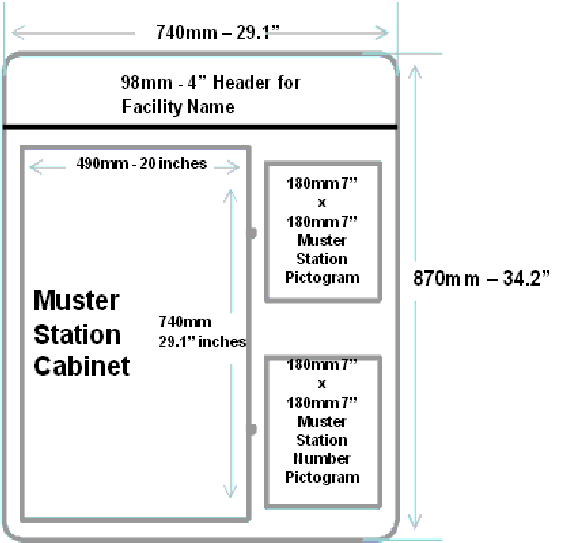

Muster and Assembly Board, Cabinet Size and Specifications

All dimensions are based on the Stainless Steel muster station box, these can vary slightly. The overall dimensions will remain constant however layout spacing could change slightly. Maximum size in all cases 740mm – 29.1” inches x 870mm – 34.2” inches.

Each cabinet is supplied with a fixing kit comprising of the following options:

1. Handrail fixing kit – please advice handrail size for brackets

2. Bulkhead fixing kit – supplied with either - screws or heavy duty all weather adhesive, please specify

The backing board is constructed from 4mm Di-bond aluminum with white stove lacquered from and rear layers, suitable for harsh environments and UV resistant. Pictograms are vinyl with non fading UV resistant ink. The Muster Cabinet box is 316 Stainless Steel and suitable for both internal or external applications. When ordering please specify hinge style. Options side mounted pull clips or front swivel handle.

4 x T-Card racks are supplied with a maximum card holding capacity of 100, in this case the racks will be designed to hold 100 T-Card.

All dimensions are based on the fiberglass muster station box, these can vary slightly. The overall dimensions will remain constant however layout spacing could change slightly. Maximum size in all cases 740mm – 29.1” inches x 870mm – 34.2” inches.

Each cabinet is supplied with a fixing kit comprising of the following options:

1. Handrail fixing kit – please advice handrail size for brackets

2. Bulkhead fixing kit – supplied with either - screws or heavy duty all weather adhesive, please specify

The backing board is constructed from 4mm Di-bond aluminum with white stove lacquered front and rear , suitable for harsh environments and UV resistant. Pictograms are vinyl with non fading UV resistant ink. The Muster Cabinet box is fiberglass and suitable for both internal or external applications. When ordering please specify hinge style. Options side mounted pull clips or front swivel handle.

4 x T-Card racks are supplied with a maximum card holding capacity of 100, in this case the racks will be designed to hold 100 T-Cards.

Additional options:-

Plastic or Card Colored, writing area lined or blank and the whole card area can be colored.

Please specify when ordering:-

• Cabinet Type, Stainless Steel or Fiberglass

• Internal T-card rack size, 50/75/100 or 150

• Facility Name or Company Logo required (or both)

• T-card Cabinet capacity size

If a single cabinet is supplied it will be provided with a Photoluminescent. NUMBER 1 if not specified.

In all cases a Photoluminescent. 5 x man in Immersion pictogram is supplied for standard muster cabinets.

If Multiple cabinets are ordered, please specify the numbers required for muster locations. i.e. 1/2/3/4

RSS-S03

Interior Stainless

Steel Muster cabinet

740mm x 870mm

29.1” x 34.2”

Are available in either 316 Stainless Steel

or fully molded Fiberglass, both cabinet types

are weather resistant , durable and hard wearing.

RSS-S04

Interior Stainless

Steel Muster cabinet

740mm x 870mm

29.1” x 34.2”

Are available in either 316 Stainless Steel

or fully molded Fiberglass, both cabinet types

are weather resistant , durable and hard wearing.

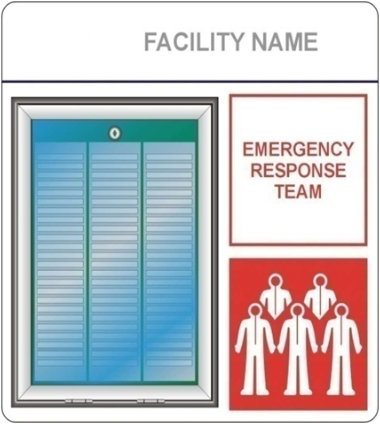

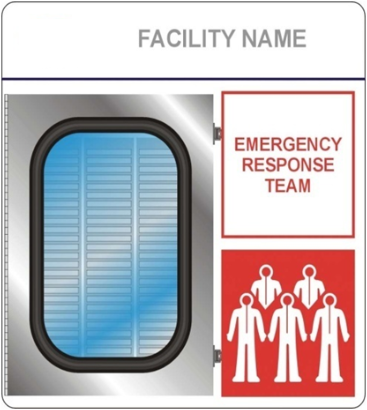

RSS-ERT 001

Exterior Emergency Response Muster Cabinet

Size - 740mm x 870mm – 29.1 x 34.2”

Used to designate Personnel assigned to emergency response duties.

RSS-ERT 002

Interior Emergency Response Muster Cabinet

Size - 740mm x 870mm – 29.1 x 34.2”

Used to designate Personnel assigned to emergency response duties.

Emergency Response Board Size and Specification

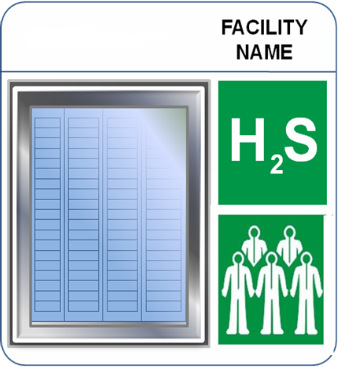

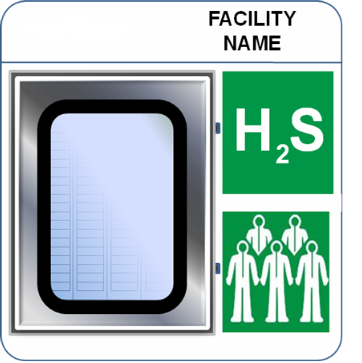

H2S Muster Display Cabinet in Stainless Steel with removal “T” cards for installation in all areas and designated for the muster assembly points for all personnel.

RSS-S05

Muster Board - Offshore

Size - 600mm x 630mm – 23.6” x 24.8”

Indicates area Personnel must Muster in an Emergency.

RSS-S06

Muster Board – Offshore

Size - 600mm x 630mm – 23.6” x 24.8”

Indicates area Personnel must Muster to in an Emergency.

Muster Station display boards are designed to provide assembly points in the case of an Emergency.

Designed to designate personnel assigned to Muster in cases of Emergencies.

Muster and Assembly Board T- Card Racks Size and Specification

RSS-MR01

Durable and hardwearing 100 -150 Card Muster Station rack

We also supply 50, 75,100, 150

RSS-MR02

Durable and hardwearing 75 Card Muster Station

card holder racks

RSS-MR03

Durable and hardwearing 50 Card Muster Station

card holder racks

SPECIFIC LOCATION (NORMAL/MUSTERED STATUS)

RSS-MP15

Display Board

300 x 800

11.8” x 31.4”

RSS-SL016

Display Board

300 x 800

11.8” x 31.4”

RSS-SL017

Display Board

300 x 800

11.8” x 31.4”

RSS-SL018

Display Board

300 x 800

11.8” x 31.4”

RSS-DTC019

Display Board

400 x 800

11.8” x 31.4”

T-Card inserts for use with T-Card Racks, available in 50, 75, 100 and 150 Qty’s

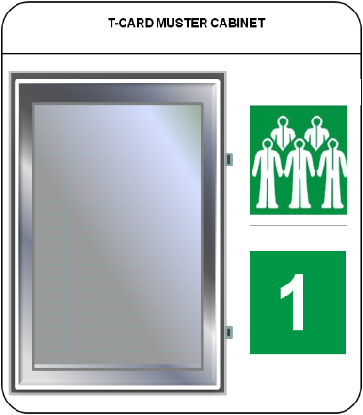

Stainless Steel Muster Cabinet RSS-001

Interior /Exterior 004 Cabinet

Interior/Exterior Stainless Steel Cabinet

740mm x 870mm – 29.1” x 34.2” crew muster with removable Station display for designated Muster areas for personnel.

MUSTER POINT (NORMAL STATUS)

MUSTER POINT (MUSTERED STATUS)

RSS-MN10

Display Board

300 x 800

11.8” x 31.4”

RSS-MN11

Display Board

300 x 800

11.8” x 31.4”

RSS-MN12

Display Board

300 x 800

11.8” x 31.4”

RSS-MP13

Display Board

300 x 800

11.8” x 31.4”

RSS-MP14

Display Board

300 x 800

11.8” x 31.4”

Internal/External RSS-002 Cabinet

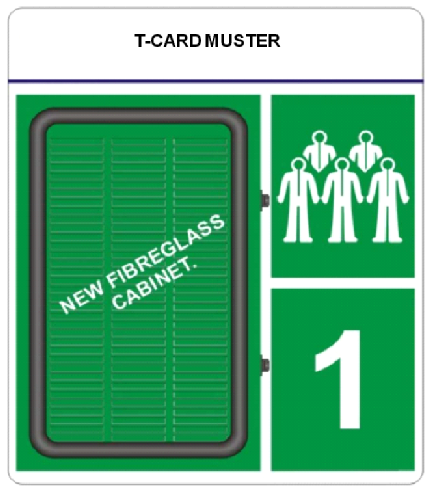

Fiberglass Cabinet 740mm x 870mm crew muster with removable station display for designated Muster areas for personnel.

No 4 white lined

No 4 colored lined

No 2 white lined

No 2 colored lined

For more information, please call and one of our representatives, we will be happy to answer any questions you may have.

Tel: 281 676 8008 Fax: 281 676 8033

Email: sales@rssusservices.com

www.rssusservices.com www.rssusservices.com

GLOBAL CAPABILITY

WHITE, GREEN, BLUE, YELLOW, RED, PINK, ORANGE, BROWN

Plastic Card Color option:-

WHITE, GREEN, BLUE, YELLOW, RED, PINK, ORANGE, BROWN
