Life Raft Cradles with Optional Stacking frames for Offshore Applications

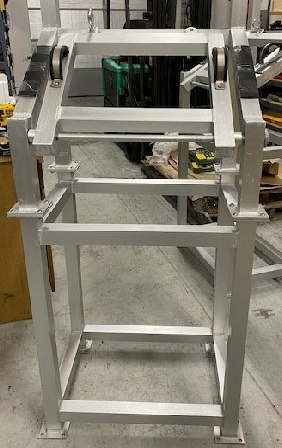

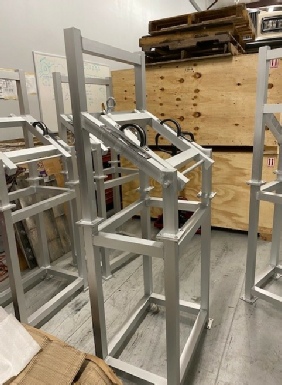

RSS build and supply life raft cradles for our MES systems which in most cases are integrated into the systems, however we also build and supply stand alone deck mounted cradles suitable for all size A/B pack rafts up to 50 man capacity. The pictures shown above are cradles we designed and built for a customer offshore Mexico who wanted to retain there handrails without the need to cut them to accommodate the life rafts cradles. RSS designed and built purpose stacking frames that enabled the cradles to be bolted to a lower frame providing the height required to deploy over the top of the hand rails thus alleviating the need to cut and modify the handrails.
These cradles are supplied in aluminum and are light weight with a top drop down frame that releases the rafts to sea when deployed. Designed to be simple mechanical with limited moving parts to reduce the risk of failure to the lowest acceptable levels.
RSS can build and supply life rafts cradles that are single or multiple inclined cradles for deploying multiple stacked rafts, please contact us we will be happy to provide a quotation to build and supply life raft cradles in any design or configuration you require.
Breakdown of Components UPPER LIFE RAFT CRADLE: -
1. Life Raft Cradle frame constructed from aluminum and anodized.
2. Front release frame constructed from aluminum and anodized.
3. Deployment Control Arm with Split Pin
4. Qty 4 x -
Optional -
1. Lower main frame constructed from aluminum and anodized.
2. Qty 4 x -
3. Qty 4 x -
Please refer to GA Drawings: -
1. Please refer to the attached PDF showing design drawings (RSS-
Inspection & Assembly Prior to Installation
The RSS Life Raft Cradles and optional Stacking Frames are designed to enable a containerized
life raft to be deployed to sea without the need to cut the facilities hand-
Each Life Raft Cradle undergo’s a full FAT inspection prior to shipping to ensure
that the units perform as designed with all findings fully documented. The Life
Raft Cradles are constructed from aluminum tubing which has been anodized to ensure
maximum longevity in an offshore salt laden environment and a 24-
Model Numbers and Suitable for the following life raft container size:
Model Number
Size of Raft
Single Deck Mounted
Description
Fitting
RSS-
12
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
16
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
20
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
25
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
35
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
50
Single Raft
Single Life Raft Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
Model Number Stacking Frames
Size of Raft
Single Deck Mounted
Description
Fitting
RSS-
12
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
16
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
20
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
25
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
35
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
RSS-
50
Single Raft
Single Stacking Frame Cradle Aluminum Anodized
Bolt down to deck, grating or suitable structural arrangement
Notes*
RSS can build and supply life raft cradles with multi stacking capability suitable for:
PDF Downloads
GA Drawings
Basis of Design
For more information, please call and one of our representatives, we will be happy to answer any questions you may have.
